Aluminum
Curtain Wall
High-performance facades for residential and commercial spaces.
Supply & Installation in New York & Connecticut
Curtain Wall System Options
High-Performance Glazing Solutions
Choose from visible-frame and high-performance aluminum curtain wall systems for modern glass facades, large openings, and commercial glazing projects.

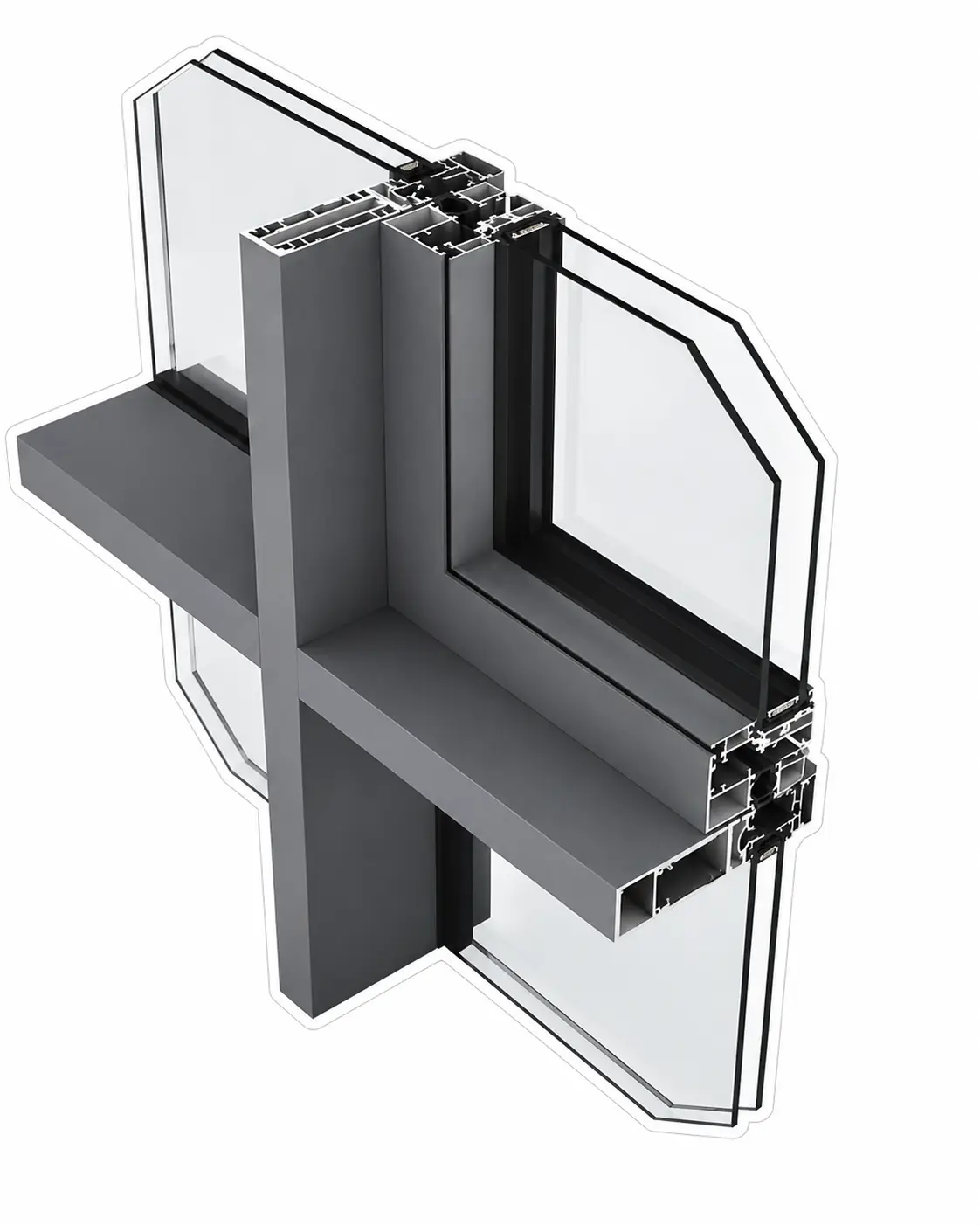

OpenSky 150.1
High-performance aluminum curtain wall system designed for large spans and modern glass facades.
Performance
- Water tightness 500 Pa
- Air tightness 1.8 m³/(m²·h)
- Wind resistance 4 kPa
- Sound insulation up to 40 dB
- U-value 0.39
- SHGC 0.22
System
- Profile 6063-T5 aluminum
- Frame width 207 mm
- Profile thickness 3.0 mm
- Sealing EPDM rubber gasket system
Glazing
Double tempered LOW-E glass
6mm + 12A + 6mm, argon filled

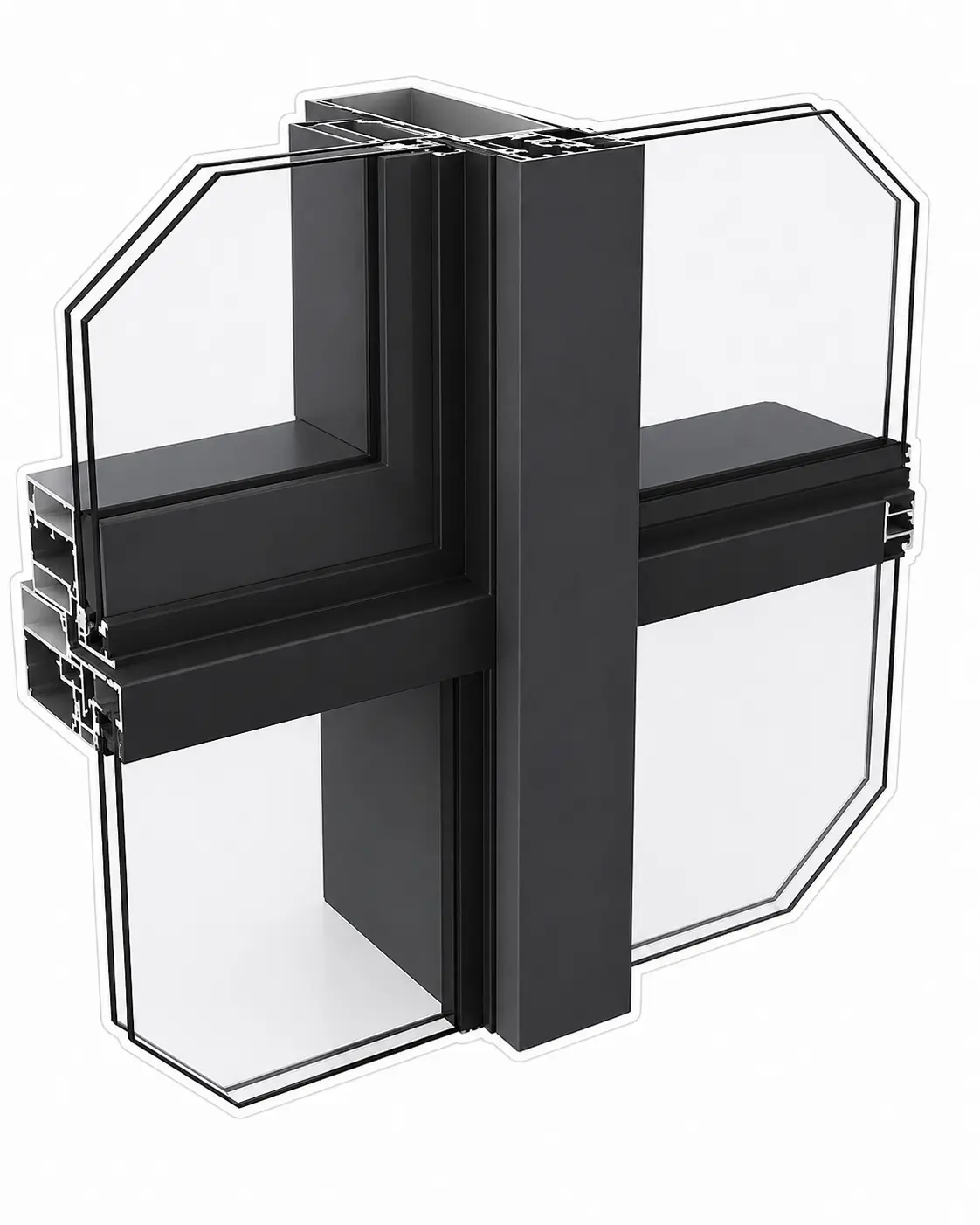

OpenSky 150
Advanced aluminum curtain wall system with integrated opening panels and precision hardware.
Performance
- Water tightness 500 Pa
- Air tightness 1.8 m³/(m²·h)
- Wind resistance 4 kPa
- Sound insulation up to 40 dB
- U-value 0.39
- SHGC 0.22
System & Hardware
- Profile 6063-T5 aluminum
- Frame width 205 mm
- Profile thickness 3.0 mm
- Handle KINLONG
- Sealing EPDM rubber gasket system
Glazing
Double tempered LOW-E glass
6mm + 12A + 6mm, argon filled
(PVDF aluminum spacer between glass panes)
Available Opening Size
Opening panel:
Width: 700–1500 mm
Height: 800–1500 mm

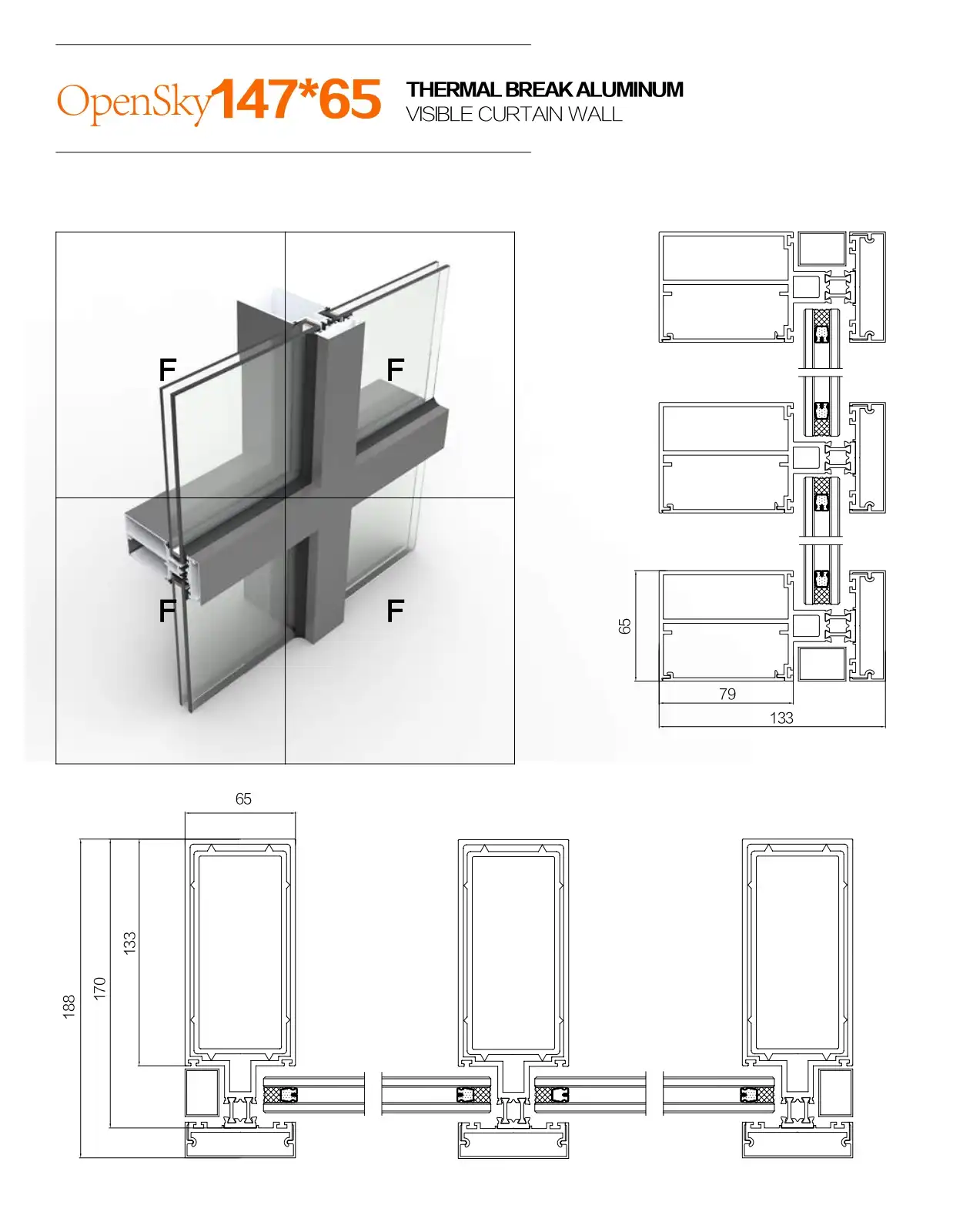

OpenSky 147*65
Versatile aluminum curtain wall solution for diverse architectural applications.

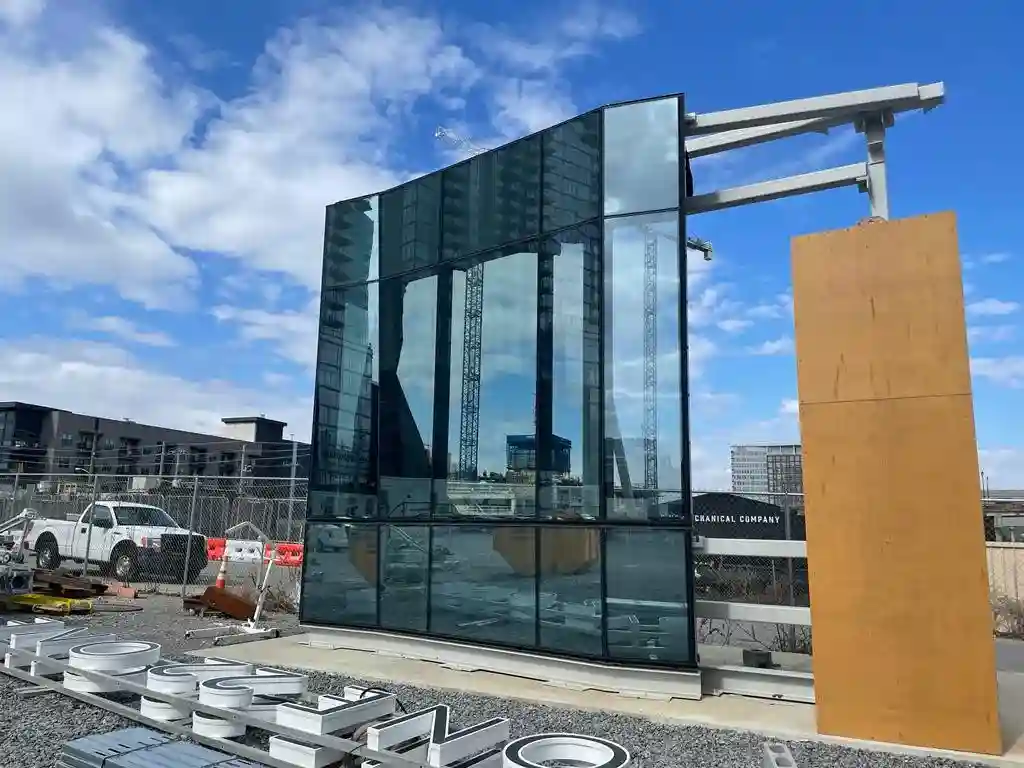

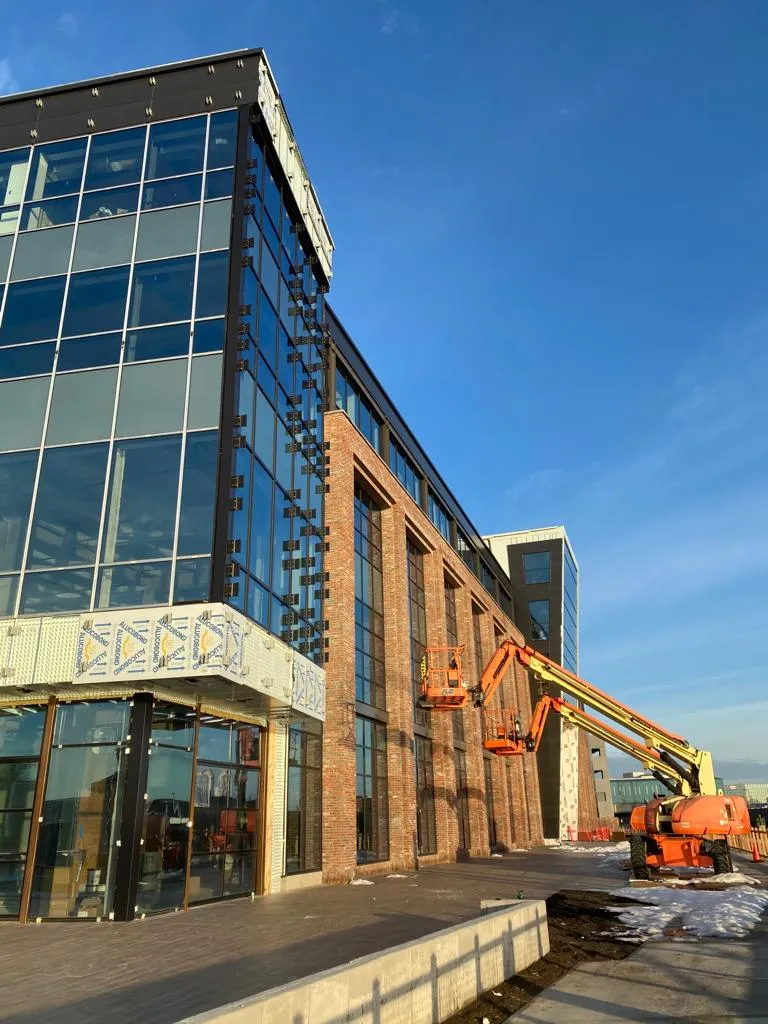

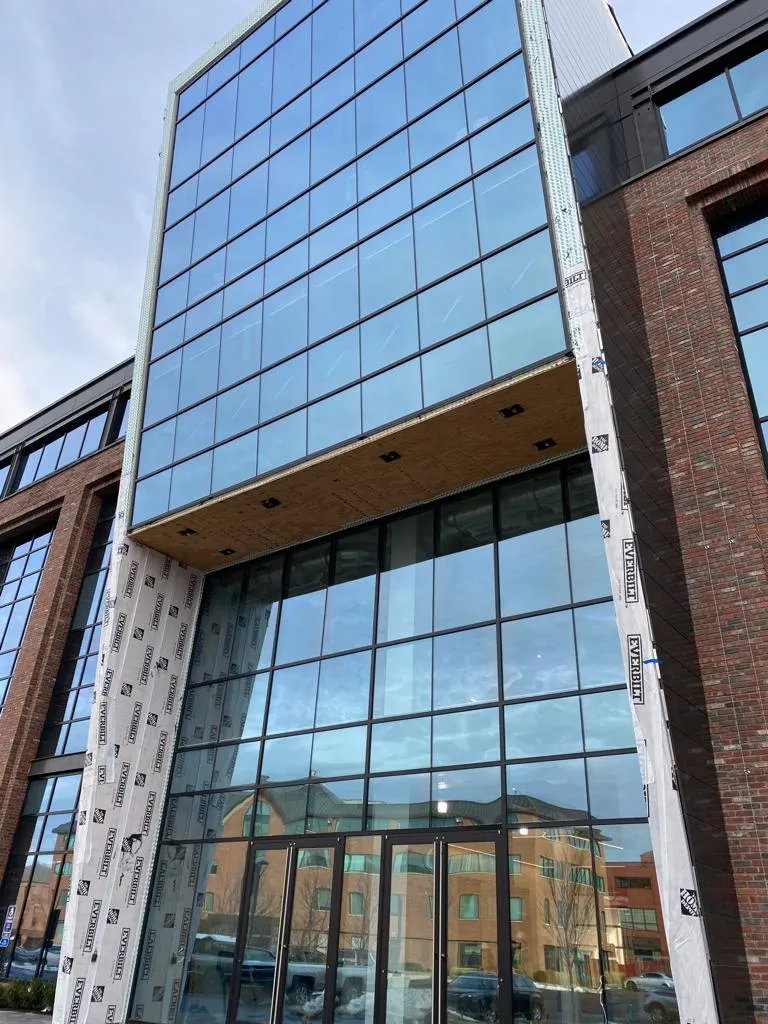

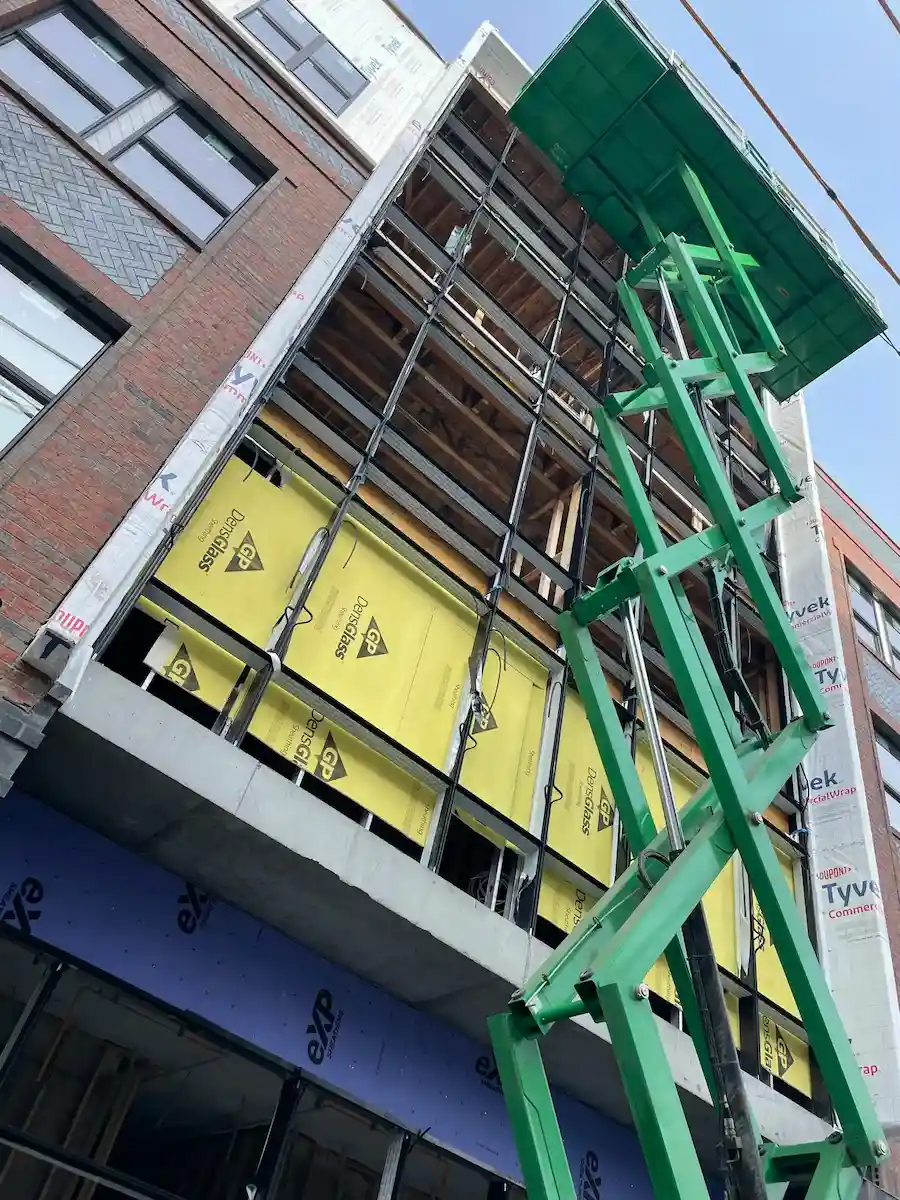

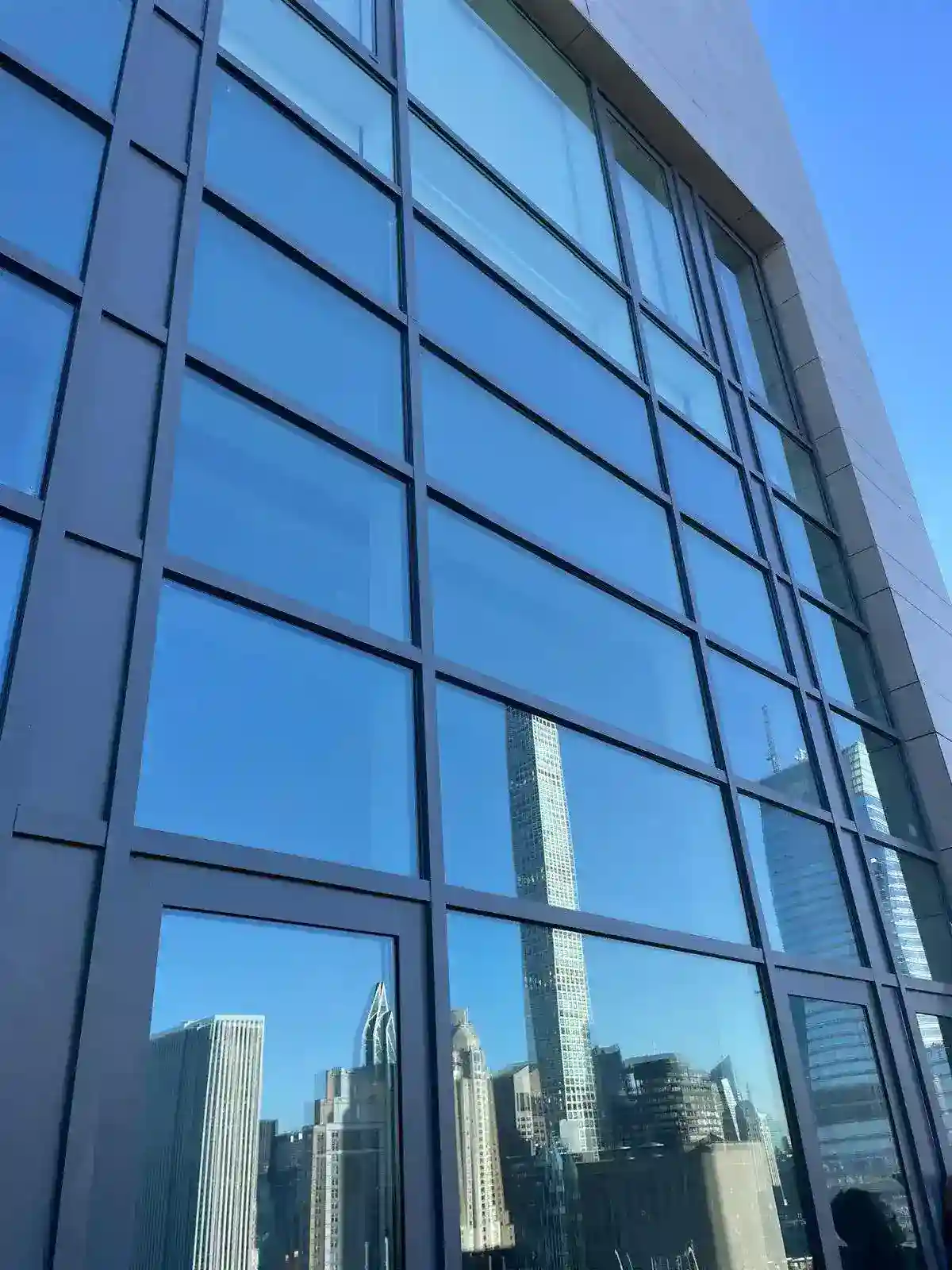

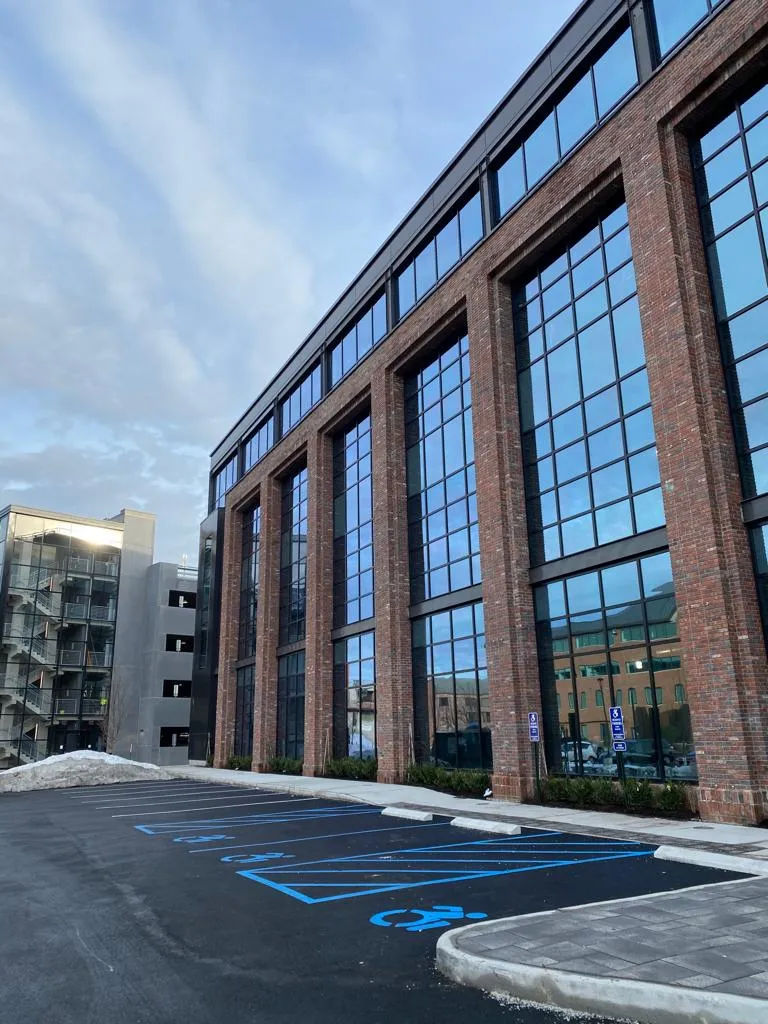

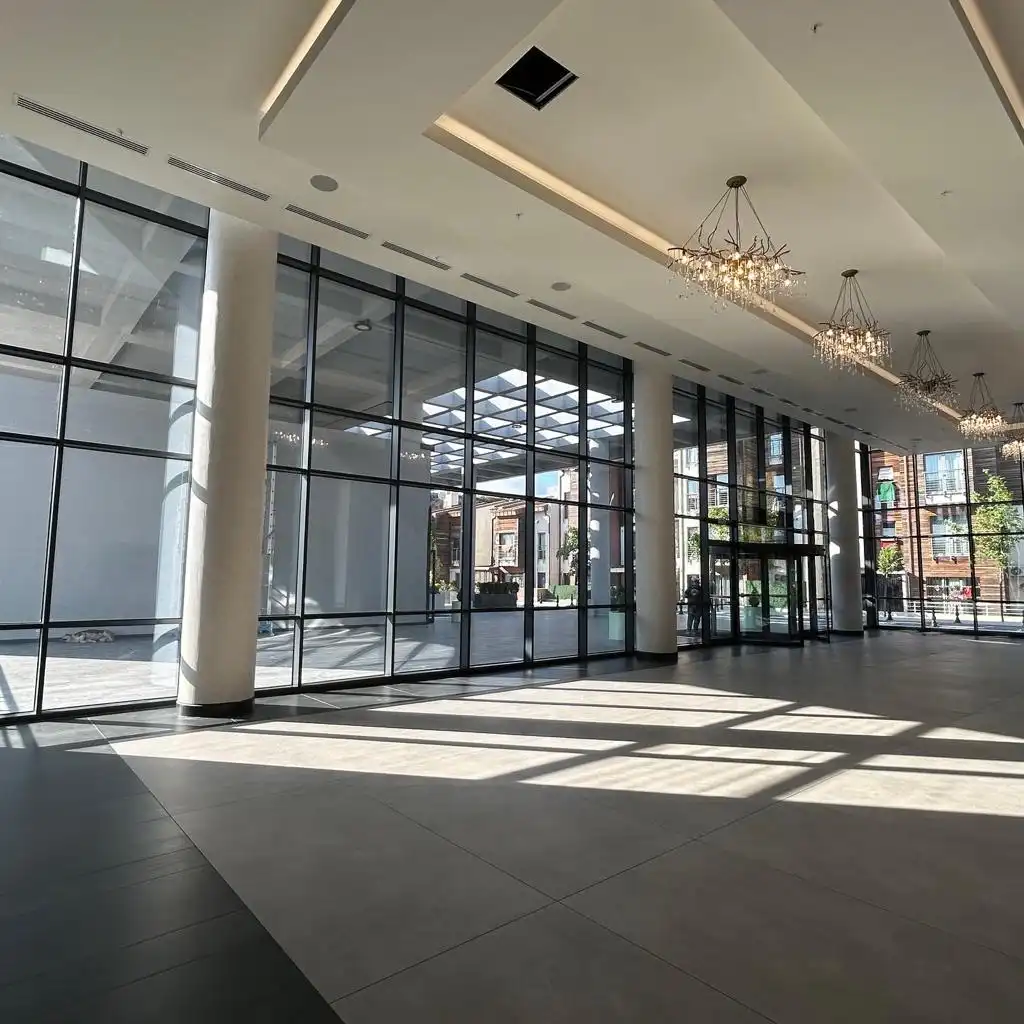

Our Portfolio
Curtain Wall Projects
A showcase of our structural glazing and curtain wall installations across various architectural styles.
.webp)
Frequently Asked
Questions
Do you supply only or also install? expand_more
We provide full service including technical drafting, supply, and installation by our expert on-site teams.
What is the typical lead time for aluminum curtain walls? expand_more
Most projects are completed within 4–12 weeks depending on system complexity and customization.
Do you offer financing options? expand_more
Yes. We offer flexible financing for qualified projects, including options with low monthly payments and up to 12 months of 0% interest. Financing is available for projects up to $250,000.
Can you work from architectural drawings or specs? expand_more
Yes, our internal engineering team specializes in taking CAD/BIM drawings and providing detailed glazing schedules and structural proposals.
What types of projects do you work on and what areas do you serve? expand_more
We handle both residential and commercial projects, including custom homes, storefronts, and curtain wall systems.
We primarily serve New York and Connecticut, providing full supply and installation.
Contact Us
Request a
Quote
Send us your drawings or project details and weРІР‚в„ўll recommend the right architectural aluminum window system.
